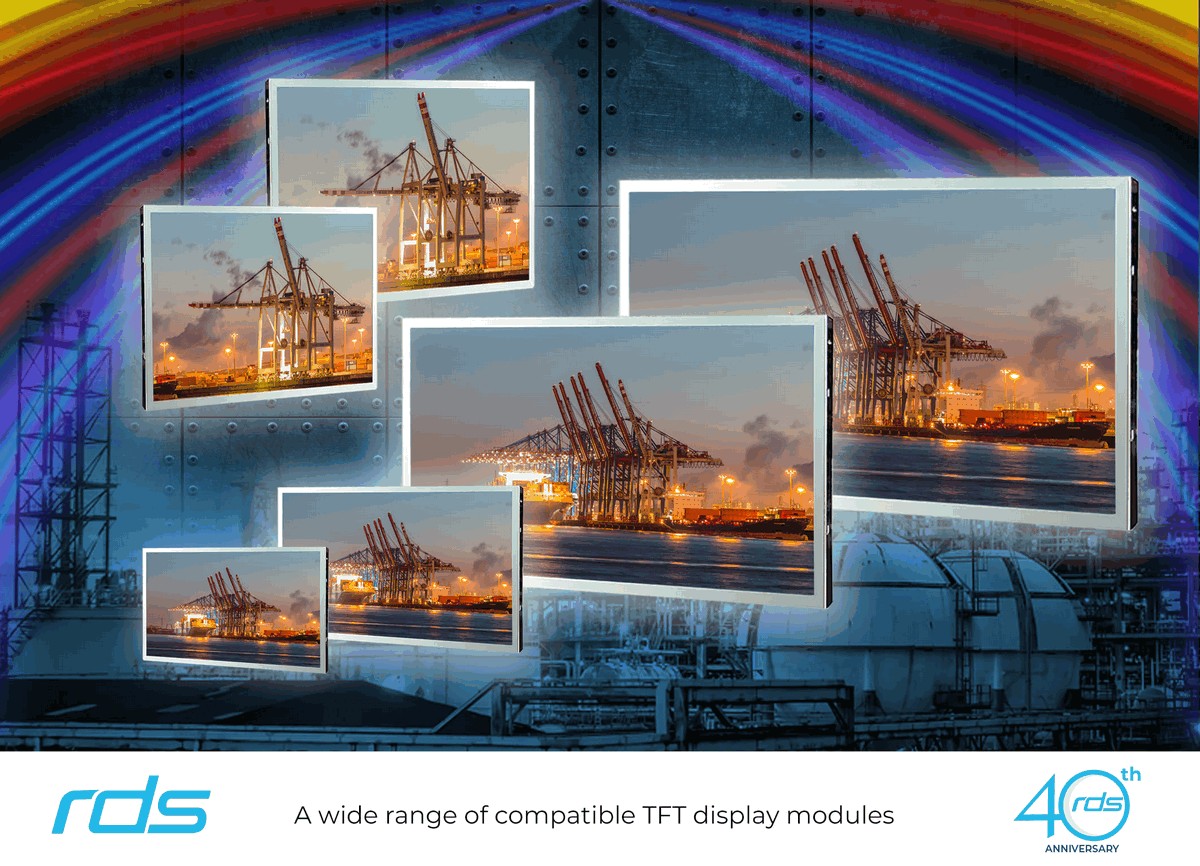

Review Display Systems (RDS) has announced the introduction of a new family of TFT display modules. Chefree has designed and developed the Family Model Series of compatible TFT displays that all feature a common, universal 30-pin data interface.
The Family Model Series product range implements a universal 30-pin connector which supports a 24-bit LVDS interface, enabling a colour palette of up to 16.7 million colours, a 3.3V power circuit, a 12V LED backlight driver providing backlight dimming, and an EETI touch controller offering support for USB or I²C interface for projected capacitive touchscreens.
The display modules also provide excellent optical performance with the implementation of IPS (in-plane switching) LCD technology which enables highly consistent colour and image reproduction, and wide viewing angles. High brightness options are available with brightness specifications ranging from 350cd/sqm up to 1000cd/sqm. Operation in extreme environments is supported with a wide operating temperature range of -30°C to +85°C.
Justin Coleman, Display Business Manager, RDS said, “One of the significant benefits of the new Family Model Series is the wide range of display sizes and resolutions available which enables the ability to easily migrate between different display formats and yet still retain the same drive electronics and display interconnect. The Chefree range of TFT display modules provides a simple, reliable and cost-effective solution that can be used across a wide range of products and systems.”
